Quick Details

  • Condition: New
  • Type: Vertical
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: JOINT/OEM
  • Model Number: V85-74ef
  • Voltage: Customized
  • Power(W): 7.5KW
  • Dimension(L*W*H): 2450*2180*2650mm
  • Weight: 3800kgs
  • Certification: ISO9001
  • Warranty: 1 Year
  • After-sales Service Provided: No overseas service provided
  • Processing: Metal
  • Machine Type: Vertical Machine Centers
  • Controlling Mode: Mitusbishi/Fanuc system
  • Spindle taper: BT40-140 short nose spindle
  • ATC type: Arm type tool magazine with 24 tools
  • Color: optional
  • Spindle speed: 10000/12000/15000 Rpm
  • TABLE SIZE: 450*900mm
  • Precision: high precision
  • Max.cutting feed: 15m/min

Packaging & Delivery

Packaging Details: 40HQ: wooden packages, wooden cases
Delivery Detail: 40 days after payment
Product Description

4 axis low cost cnc machine center with auto-tool changer V85

Product details

ProcessingMetal
Machine TypeVertical Machine Centers
Controlling ModeMitusbishi/Fanuc system
Spindle taperBT40-140 short nose spindle
ATC typeArm type tool magazine with 24 tools
Coloroptional
Spindle speed10000/12000/15000 Rpm
TABLE SIZE450*900mm
Precisionhigh precision
Max.cutting feed15m/min
Product Keywords cnc machine 4 axis,low cost industrial cnc machine center,new auto-tool changer cnc machine center

Features:

1. Specially designed for parts processing.3 axes adopt ball guide way or roller linear guide way.Rapid feed speed 48 meters/min;

2.Special Large span structure of the machine base and column,is able to bear high inertia gravity and improved dynamic responsiveness of the whole machine;

3.Short nose design of Direct-Connection high speed spindle with excellent rigidity,increases efficiency and reduces abrasion of tools.Maximizes the transmission efficiency of spindle motor,and also increases processing accuracy and spindle durability;

4.The machine employed backward chip removal with mass flow chip flushing system,suits particular parts processing for faster chip removing;

5.Optional:spindle rotation speed,12000/15000 rpm/min direct connection spindle,Spindle water coolant,Ring spray spindle,to accomodate different customer needs;

6.Tool magazine adopts mechanical seal design and software warming to ensure reliable processing.

Accessories

1.Standard Accessories


Fanuc/Mitsubishi controller system

10000rpm spindle rotation speed

24tool arm type tool magazine

Spindle oil cooler

Heat exchanger

Full enclosed cover

Spindle encoder position system

Three Inner encoder feedback system

Auto lubrication system

Pneumatic system

RS232 Interface

Operation unit

Warming light

Working light

Tool and tool box


2.Optional Accessories


Siemens controller/ other controller

Screw type auto conveyor

Chain type auto conveyor

4 axis rotary table

Through spindle water coolant

Ring spray spindle

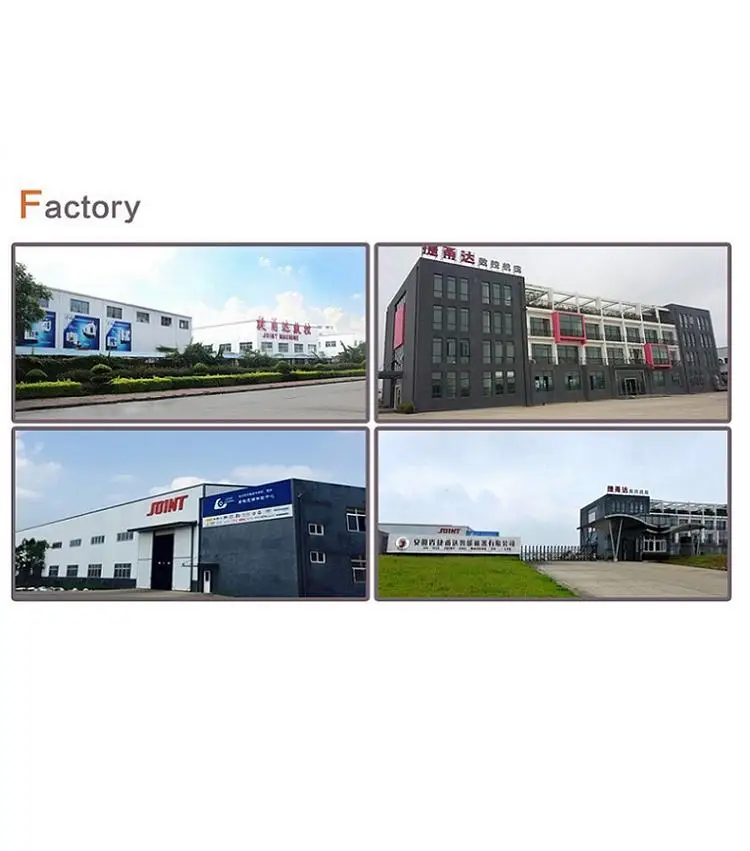

Company Information

SHENZHEN JOINT INDUSTRY CO.,LTD specializes in R&D and manufacturing mold processing and machinery parts processing equipments.We developed high quality and high-tech research,development,manufacturing,service team and management system,and expanded products to more than 10 series from milling machines,to machine centers.With the exceptional quality products and distinctire brand reputation,our products are sold to more than 40 developed cities all over China,and also to more than 20 countries all over the world across Asia,Europe and America.

Certifications

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 25-35days if the goods are in stock. or it is 35-45 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: 30% in advance.and the rest payment should pay before delivery.

Q: How many years have your company established?

A: 21 years, our company built in 1995.



Website: www.jointmachines.com
Tel: +86-755-84678998
Fax: +86-755-84686150
Skype: lisa-joint
Phone: +0086-15218746521
Wechat: 1512089851
QQ: 1512089851
Add:Block 64,Fumin Industry Area, Pinghu Town ,Longgang District, Shenzhen City ,51811,P.R.China
